■Concept

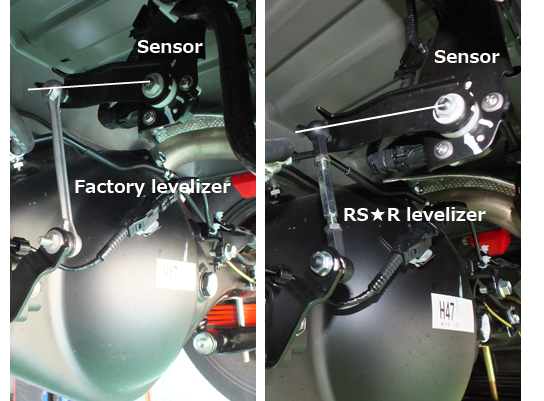

セルフレベライザーリンクロッド 装着

Some of the models with self levelizer link rod (Automatic headlamp axis adjustment system) from factory have a sensor on its rear axle.

セルフレベライザーリンクロッド NORMAL

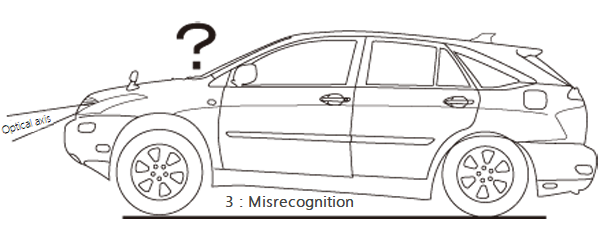

When lowering the car, due to the ride height change, rear axle sensor makes false recognition that only rear is lowered. Because of this, automatic levelizer system operates to adjust the headlight axis lowered and head light would point improper position. The RS*R Self levelizer link rod is for those who have such a problem. Our product makes it possible to adjust the headlight axis and correct it to the proper position.

セルフレベライザーリンクロッド DOWN
セルフレベライザーリンクロッド NORMAL

Please refer to the Item Research for product compatibility of each part number.
Adjustment range is pitch length of joint bolt on both sides.

Part number Size Minimum adjustment length Maximum adjustment length JAN code Price (Tax excluded)
LLR0005 3S About41㎜ About46㎜ 4511969340053 JPY6,000
LLR0006 SS About48㎜ About56㎜ 4511969340060 JPY5,200
LLR0007 S About56㎜ About67㎜ 4511969340077 JPY5,200
LLR0007A S(with stay) About56㎜ About67㎜ 4511969340084 JPY5,800
LLR0007B S(with stay) About56㎜ About67㎜ 4511969340152 JPY5,800
LLR0008 SM About62㎜ About79㎜ 4511969340091 JPY5,200
LLR0008A SM(with stay) About62㎜ About79㎜ 4511969340107 JPY5,800
LLR0009 M About75㎜ About92㎜ 4511969340114 JPY5,200
LLR0010 L About90㎜ About107㎜ 4511969340121 JPY5,200
LLR0011 LL About95㎜ About112㎜ 4511969340138 JPY5,200
LLR0012 3L About120㎜ About137㎜ 4511969340145 JPY5,200

■Feature

・About product and installation

セルフレベライザーリンクロッド ナット セルフレベライザーリンクロッド ナット

We have some types of products to cater to various models and adjustment ranges. If the product would be used for the model out of compatibility, please check the vehicle attachment carefully as there are two patterns of adjustment; lengthening or shortening the rod from the factory length. The anti-rust resin material is used for link body. This item consists of rod assy, nut and washer (assembled in rod assy) so easy bolt on installation is possible.

・About adjustment

セルフレベライザーリンクロッド ターンバックル

Turnbuckle type makes it easy to adjust. (Except for 3S, SS) The rod end (mounting part) of this item is M6 size. Please make sure that it fits in the car before installation. After installing the product, it is highly recommended to check the light axis with the tester at the nearby workshop.

【NOTE】

・Please do not select the product on the basis of factory rod length as adjustment method is different depending on the model.
・There are two patterns of adjustment; lengthen the rod or shorten the rod. Please make sure the adjustment patterns of vehicle in advance.
