Alignment Gauge

Alignment Gauge TOP

■Concept

RS☆R Alignment Gauge enables you to measure the camber and toe angle with smart phone.

Portable bag comes with the kit.

MSRP : JPY50,000 (tax excluded)



Camber gauge bag is going to be sold separately.
Visit On-line shopping page in our website.
※For only domestic shipping.

MSRP : JPY5,500 (tax excluded)

Size : L 700mm x H 350mm x W 120mm

Outside : Zip pocket x 1
Inside : Mesh pocket x 1

Shoulder strap comes with the bag.

Material : Polyester

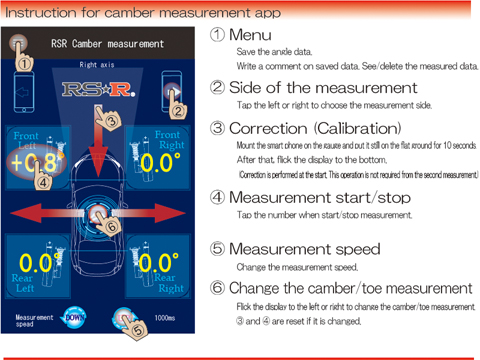

■Measurement of the camber

Just mount your smart phone on the frame of the gauge and you can measure the camber angle.
※App for RS☆R Alignment Gauge needs to be downloaded.

Function
・Display the angles of four corner
・Calibration (Zero adjustment)
・Save the data

Specification
・Adjustable range : 240~570mm (Diameter of the rim : 10~21inches)
・Minimum measurable unit : 0.1°
・Mountable smart phone : Width 58~80mm, Thickness 6~11.5mm

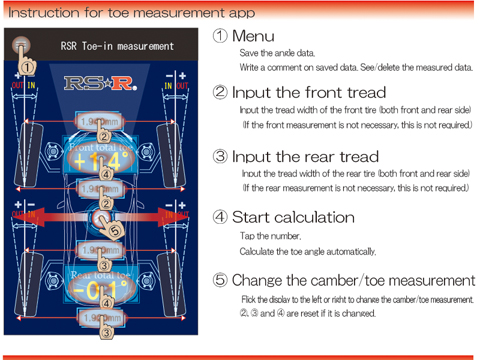

■Measurement of the toe

Measure the toe with included gauge and the app calculate the angle.
The data can be saved in the app.
※App for RS☆R Alignment Gauge needs to be downloaded.

Function
・Display the angles
・Save the data

Specification
・Adjustable range : 316~502mm (Diameter of the rim : 10~21inches)

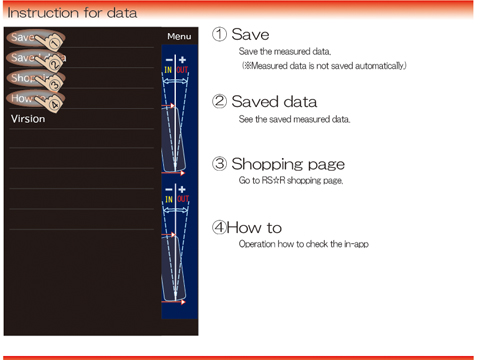

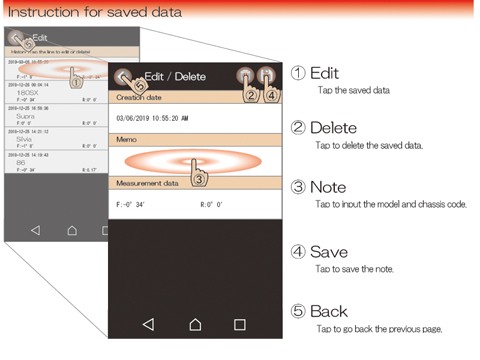

■App for RS☆R Alignment Gauge

RS☆R Alignment Gauge app needs to be downloaded.
Minor error can ne occured depending on the accuracy of built-in sensor of your smart phone.

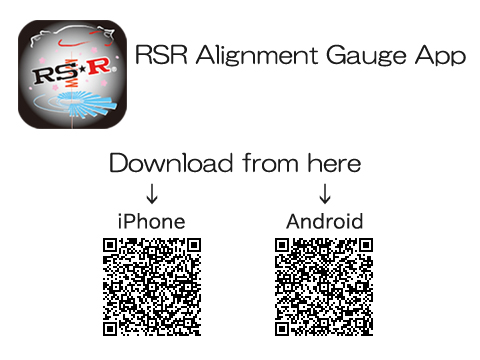

Please download the app from the QR code below and make sure if it functions properly in advance.



iPhone
Android
